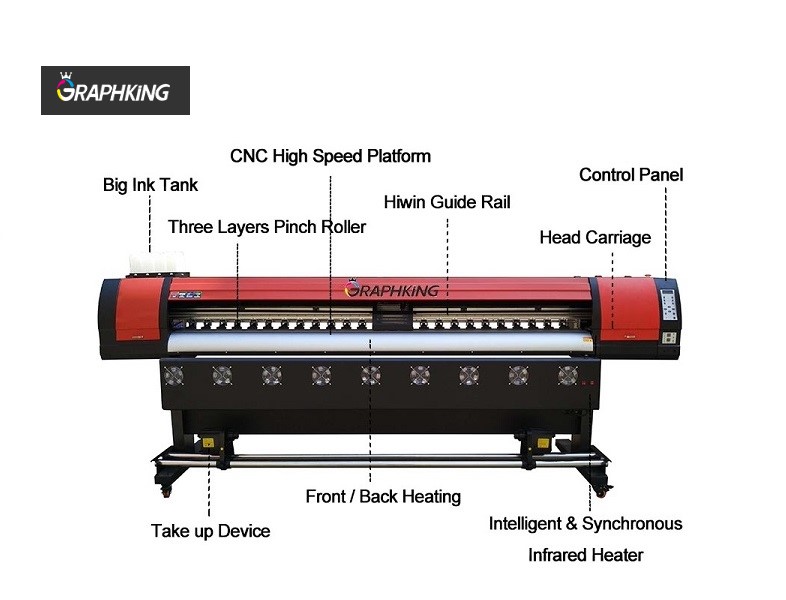

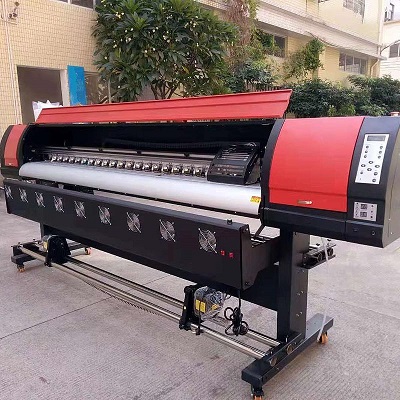

GraghKing 8ft 2.5m GK25S large format printer is one economical and practical printer for outdoor advertising, photo and home decoration printing, such as promotion advertising, poster, wallpaper
printing.DX5 /DX7/DX11 (XP600) head available. Many head choices for customers to choose.
With stable quality,this type has won highly praised of our customers.
Product Application
Technical Parameter
Model | GK25S |
Print Head*Quantity |
DX5-2H | DX7-2H | XP600-2H |
Print Head Technology | variable ink drop technology |
Print resolution | 1440dpi | 1080dpi | 3200dpi |
Max Print Width & Feeding Width | 1600mm |
Print Speed | | 4PASS 35m² | 4PASS 33m² | 4PASS 28m² |
| | 6PASS 30m² | 6PASS 27m² | 6PASS 20m² |
| | | | |
Ink | Ink Type | Eco solvent/ water-based ink | Eco solvent/ water-based ink/ sublimation ink | water-based ink/sublimation ink |
Color | CMYK |
Ink Tank Volume | 1000ml tank for each color |
Supply Type | Negative pressure continuous ink supply system |
Print Media | Water-based Media | PP self-adhesive vinyl, backlit film, photopaper, movable PP self-adhesive vinyl, photo cloth etc. |
Eco solvent Media | flex banner,vinyl,PP paper ,one way vision,canvas,car sticker, reflective film, PVC cold lamination film etc. |
Heating System | Infrared dryer & Fan Drying System |
Drying System | Front fan drying system |
Media Feeding & Take-up System | Standard |
Cleaning System | Automatic cleaning system |
Data Transmission | 1000M Network port printing |
Software | Maintop/Photoprint(Optional) |
Power Supply | AC:220V/110V，50Hz/60Hz Operating temperature 15° C-30° C relative humidity 40-60% |
Power | Standy:32W, Max:2300W |
Operation Environment | temperature 15℃-30℃; relative hunmidity 40-60％ RHmatch |
Single Head:Package Weight/Size | 300kg±5%/3970*880*1500mm(Dual head:320kg±5%/3080*900*800mm) |
