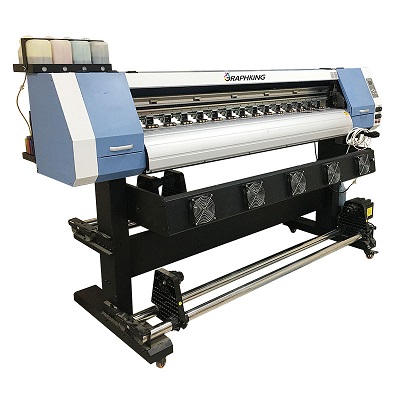

GraphKing 6ft 1.8m High Resolution DX5/XP600 Large Format Outdoor Eco Solvent Inkjet Printer

Inqury Now

Chat Now

1. Product Introduction

GraghKing GK18 Plus is equipped with 2 pcs Epson DX5. 1850mm print max-width, 1000mb network portprint interface and ink drop variable tech ensuresstableand high qualityprint output.

2. Technical Parameters

Model		GK18S
Print Head*Quantity		EpsonDX51(2)	I32001(2)	XP6001(2)
Print Head Technology		variable ink drop technology
Print resolution		1440dpi	1080dpi	3200dpi
Max Print Width & Feeding Width		1850mm
Print Speed	Draft Mode	18.5㎡/h	15.9㎡/h	21.6㎡/h
	Production Mode	15.3㎡/h	12.3㎡/h	18.1㎡/h
	Accuracy Mode	12.8㎡/h	8.2㎡/h	15.6㎡/h
Ink	Ink Type	Eco solvent/ water-based ink	Eco solvent/ water-based ink/ sublimation ink	water-based ink/sublimation ink
	Color	CMYK
	Ink Tank Volume	1000ml tank for each color
	Supply Type	Negative pressure continuous ink supply system
Print Media	Water-based Media	PP self-adhesive vinyl, backlit film, photopaper, movable PP self-adhesive vinyl, photo cloth etc.
	Eco solvent Media	flex banner,vinyl,PP paper ,one way vision,canvas,car sticker, reflective film, PVC cold lamination film etc.
Heating System		Fore /back heating
Drying System		Front fan drying system
Media Feeding & Take-up System		Standard
Cleaning System		Automatic cleaning system
Data Transmission		1000M Network port printing
Software		Maintop/Photoprint(Optional)
Power Supply		AC:220V/110V，50Hz/60Hz Operating temperature 15° C-30° C relative humidity 40-60%
Power		Standy:32W, Max:2300W
Operation Environment		temperature 15℃-30℃; relative hunmidity 40-60％ RHmatch
Single Head:Package Weight/Size		2720750325mm/280kg

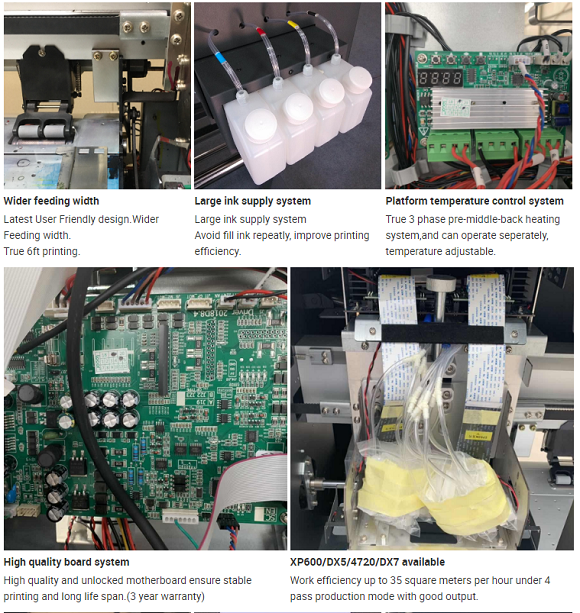

3. Product Configuration

(1) International well-known brand guide

THK Guide:High speed, mute, high precision, high straightness

(2) Original Leadshine Brushless Motor

(3) Ink stack adoptsstrike-touch cap station design and easy to adjust.

(4) High Quality Press Wheel and Guide Table Set Design

4. Application

(1) Indoor and outdoor advertising painting(Photo paper, PP paper, cold lamination film, adhesive, etc.)

(2) Wall paper production& Decorative paintings(Wallpaper substrate,canvas,non-woven fabric etc.)
